  • SuperNova FS DayLite™

SuperNova FS DayLite™

$779.00

  • SuperNova FS RED
  • SuperNova FS WHITE
Pin It

Product details

 KA Note:  Ridiculously low-drag Red or White Anti-collision light.  This is a SPECIAL ORDER light.  That's no problem, we are happy to order it for you.  Estimate 3-4 weeks for delivery.  Select the LED color you would like from the 2 choices above (Red, White).  Then click the Add to Cart button.

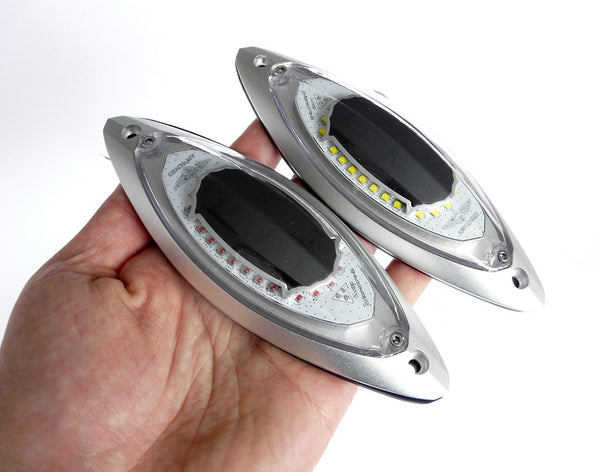

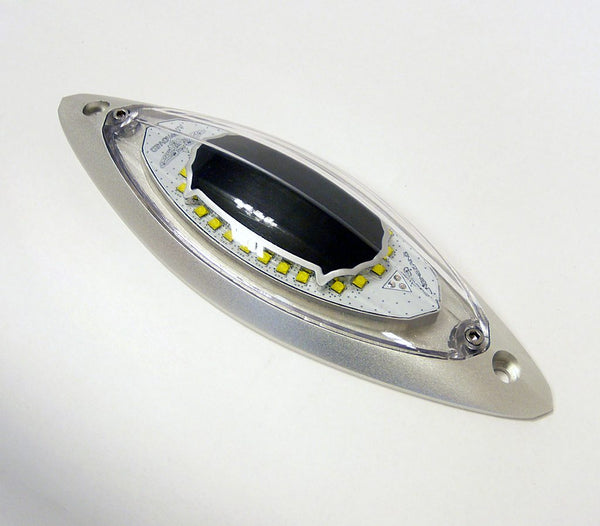

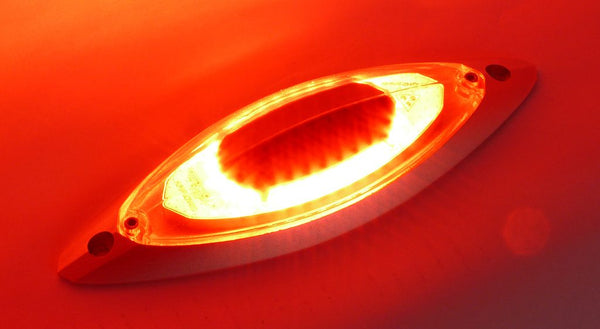

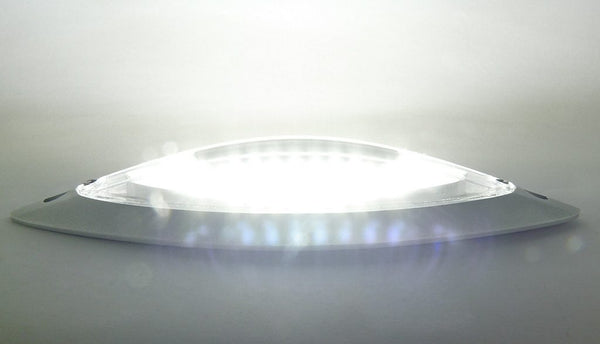

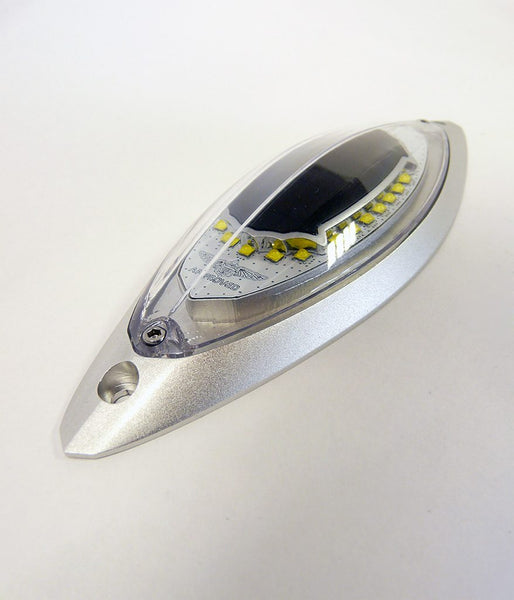

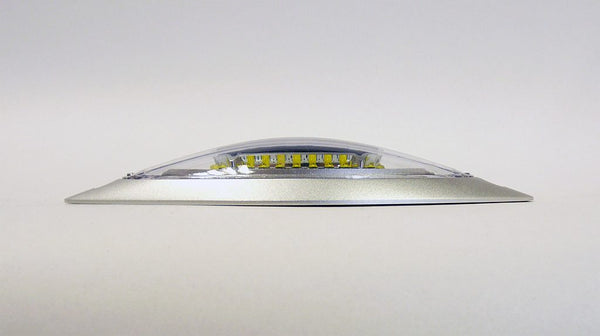

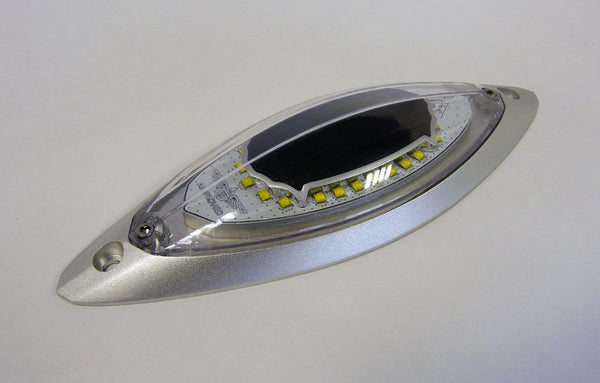

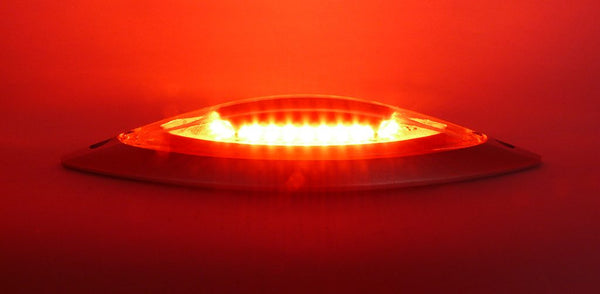

MSRP:  $795.00  The SuperNova FS DayLite – White or Red anti-collision light is a high powered LED light.  It has been designed to be lightweight, with low drag and with a low power draw to meet the highest requirements of all aircraft. It contains of red or white LEDs. SuperNova FS DayLite is available in infrared LEDs.

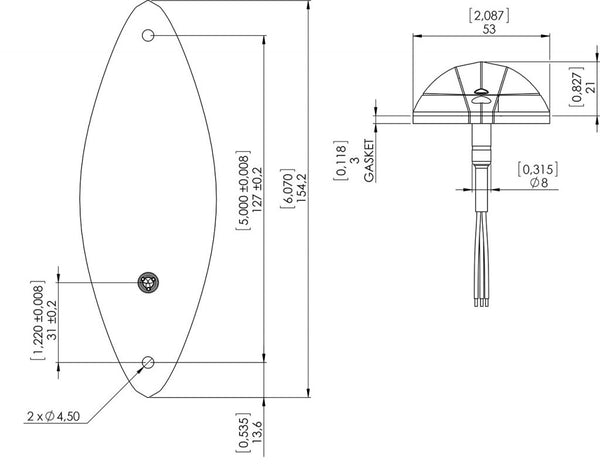

Dimensions (mm): 154.2 x 53 x 21
Dimensions (inches): 6.070“ x 2.087“ x 0.827“
Weight: 150g / 5.29 oz
Operating Voltage Range: 9-36 V DC
Input Power – White Strobe (@28V): 63.8 W (peak)
Input Power – Red Strobe (@28V): 50.4 W (peak)
Input Current – White Strobe (@28V): 2.28 A (peak)
Input Current – Red Strobe (@28V): 1.8 A (peak)
Repetition Rate of Strobe: 50 cycles per minute
Recommended size of mounting screw: M4 (SHCS #8-32)
Ambient Temperature: from -55°C to +85°C
from -67°F to +185°F
Overheat Protection: Yes (+85°C)
Reverse Polarity Protection: Yes
Transient Voltage: 60V
Under-Voltage Protection (lockout): Yes (9V)
Over-Voltage Protection (lockout): Yes (36V)
Waterproof, Dust-proof, Shock-proof, Vibration-proof: Yes

For more info, technical specs, drawings, and wiring diagram, click the Installation Manual icon below:
